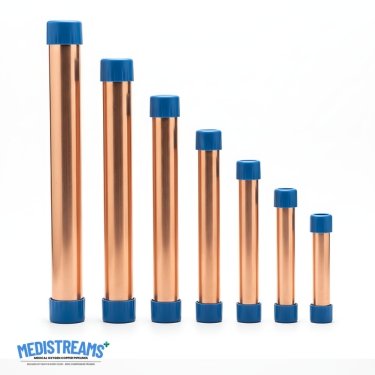

Type M ASTM B88 Copper Pipes and Tubes

Type M ASTM B88 Copper Pipes and Tubes are provided by MediStreams Oxygen Medical Copper Pipes and are designed with the economic and efficient plumbing solutions in mind. These copper tubes & copper pipes are manufactured using high grade deoxidized copper (C12200), and according to the ASTM B88 standard of seamless copper water pipes. Type M Copper Pipes have got slim walls than Type L and Type K thus ideal in low pressure residential water supply systems, drainage system, and ventilation.

Type M ASTM B88 Copper Pipes Manufacturer and Exporter
Type M ASTM B88 Copper Pipes and Tubes

ASTM B88 Type M Copper Pipes and Tubes : Specification

  • Standard: ASTM B88 – Seamless Copper Water Tube, Seamless Copper Gas Tube
  • Material: Copper (Cu-DHP) – UNS C12200
  • Type: M (Light Wall)
  • Temper: Hard Drawn (H58) / Annealed (O60)
  • Manufacturing Type: Seamless, Straight Length or Coil
  • Surface Finish: Bright, Clean, and Capped Ends
  • Certification: ASTM B88 & ASME B16.22 Compliant
  • Applications: Cold Water Lines, Vent Systems, and Low-Pressure Plumbing
Get Quotation for Type M ASTM B88 Copper Pipes and Tubes Get Quotation
Call Us for Type M ASTM B88 Copper Pipes and Tubes Call For Info
Catalogue of Type M ASTM B88 Copper Pipes and Tubes Get Catalogue

ASTM B88 Type M Copper Pipes and Tubes : Dimensions and Sizes Table

MediStreams Oxygen Medical Copper Pipelines Type M ASTM B88 Copper Pipes come in different sizes in terms of diameter and wall thickness to accommodate residential, commercial and light industrial plumbing needs.

ASTM B88M – Seamless Copper Water Tubes – Metric Dimensions – Type A

Nominal Size
Outside Diameter
(mm)
Wall Thickness
(mm)
Tolerance +/-
Maximum Deviation at any Point
(mm)
Weight
(kg/m)
6
0.236		0.9
0.0354		0.08
0.00315		0.12
8
0.315		0.9
0.0354		0.09
0.00354		0.18
10
0.394		0.9
0.0354		0.09
0.00354		0.23
12
0.472		1.2
0.0472		0.1
0.00394		0.36
15
0.591		1.2
0.0472		0.1
0.00394		0.47
18
0.709		1.2
0.0472		0.1
0.00394		0.57
22
0.866		1.6
0.063		0.15
0.00591		0.92
28
1.1		1.6
0.063		0.15
0.00591		1.19
35
1.38		1.6
0.063		0.15
0.00591		1.50
42
1.65		1.8
0.0709		0.2
0.00787		2.03
54
2.13		2.1
0.0827		0.2
0.00787		3.06
67
2.64		2.4
0.0945		0.25
0.00984		4.35
79
3.11		2.8
0.11		0.3
0.0118		5.99
105
4.13		3.4
0.134		0.35
0.0138		9.70
130
5.12		4.0
0.157		0.4
0.0157		14.2
156
6.14		4.8
0.189		0.5
0.0197		20.3
206
8.11		6.8
0.268		0.7
0.0276		38.0
257
10.1		8.5
0.335		0.85
0.0335		59.3
308
12.1		10.3
0.406		1
0.0394		86.1
ASTM B88M – Seamless Copper Water Tubes and Pipes – Metric Dimensions – Type A

Type M ASTM B88 Copper Pipes and Tubes : Uses

Type M ASTM B88 Copper Pipes and Tubes Uses

  • Domestic Cold Water Supply
  • Vent and Drain Lines
  • Radiant Heating Systems
  • General Purpose Plumbing
  • Industrial Purpose
  • Low-Pressure Water Distribution.

FAQ (Frequently Asked Questions)

What is the difference between Schedule M and L copper pipes ?

The main difference between Schedule M and Schedule L copper pipes is their wall thickness. Schedule L copper pipes have thicker walls, making them more durable and better suited for higher-pressure applications, while Schedule M copper pipes have thinner walls, making them lighter, more economical, and suitable for low- to medium-pressure plumbing systems.

Is ASTM B88 Type K or Type L ?

ASTM B88 is a standard that covers Types K, L, and M copper water tubes. Type K has the thickest wall for high-pressure and underground applications, while Type L has a medium wall thickness and is widely used for plumbing, HVAC, and medical gas systems.
