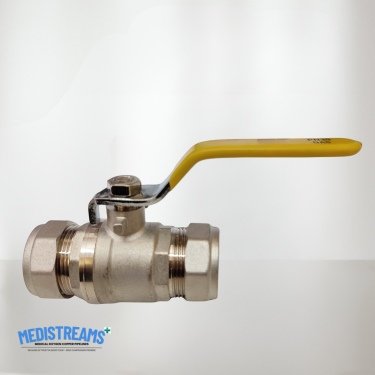

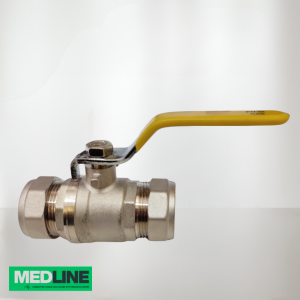

Med-Line Oxygen Medical Copper Compression Ball Valves are precision ball valves with compression ends – perfect in the fast, safe connection to copper tubing in medical and industrial gas. These oxygen-cleanable, reliable, and leak-tested valves provide easy operation and quick access to maintenance in the hospitals, clinics, and other critical facilities.
Copper Compression Ball Valves : Specification
- Type: Compression Copper Ball Valve (Compression Nut / Olive fitting)
- Material: Brass / Copper-alloy body
- Uses: Medical gas pipelines, medical oxygen, medical air, nitrous oxide, HVAC, plumbing, instrumentation
- Sizes (in): ½″, ¾″, 1″, 1¼″, 1½″, 2″ (custom sizes available)
- Tube OD (mm): 15, 22, 28, 35, 42, 54
- Wall thickness (mm): 1.0 — 1.5 (per tube standard; valve sleeves matched to tube)
- Grade: CW617N / similar dezincification-resistant brass alloys
- Standards & Cleaning: EN 13348, ASTM B88 / ASTM B819 (where applicable), CGA G-4.1 oxygen cleaning on request
- Pressure rating: Up to 600 psi (41.4 bar) typical (verify per size)
- Temperature range: −20°C to +204°C (application dependent)
- Connection: Compression nut with ferrule (olive) — easy installation without brazing
- Features: Lockable handle, blowout-proof stem, PTFE seats, 100% leak tested, serviceable design
Get Quotation
Call For Info
Get CatalogueCopper Compression Ball Valves : Dimension and size Table
Copper Ball Valves Dimension and size, Copper Compression Ball Valves Dimension and size Table
Copper Compression Ball Valves Dimension and size | ||||
|---|---|---|---|---|
| ½″ | 15 | 1.0 | ½″ compression nut | 600 |
| ¾″ | 22 | 1.0 | ¾″ compression nut | 600 |
| 1″ | 28 | 1.2 | 1″ compression nut | 600 |
| 1¼″ | 35 | 1.2 | 1¼″ compression nut | 600 |
| 1½″ | 42 | 1.5 | 1½″ compression nut | 600 |
| 2″ | 54 | 1.5 | 2″ compression nut | 600 |
Imporant Links
FAQ (Frequently Asked Questions)
Where should a copper compression ball valve be installed?
They can be installed at strategic isolation points, such as individual fixtures, water heaters, appliances, branches, equipment connections, and sections of plumbing where shut-off capability is required.
Can copper compression ball valves be used outdoors?
They may be suitable for outdoor applications if the specific valve is rated for outdoor exposure. Protection from freezing, physical damage, and corrosive environmental conditions may be required.
