EN 13348 Medical Copper Pipes & Tubes

MediStreams is a reliable engineering, manufacturing and supplying company of EN 13348 Medical Copper Pipes and Tubes designed as per requirements of Medical Gas Pipeline Systems (MGPS). Our copper pipes are also produced under strict quality checks and are totally cleaned, hence they can be used to transport things like oxygen, nitrous oxide and any other medical gases. MediStreams teems with reliability, and hygiene with full international compliance since all the pipes are available to suit your healthcare system that burdens in demand in the modern world.

Types of Medical Oxygen Copper Pipes (for Medical Applications)

• EN 13348 Medical Copper Pipes
• ASTM B280 Copper Tubes

Medical Oxygen Copper Pipes Specification

Standard	EN 13348
Application	Medical Gas Pipeline Systems (MGPS)
Material	Seamless Copper (Cu-DHP / CW024A)
Surface Condition	Degreased and Cleaned
Carbon Residue (Max)	≤ 0.20 mg/dm² (Oxygen Compatible)
Manufacturing Condition	Hard (R250) / Annealed (R220)
Temperatures Range	-20°C to +150°C
Test Pressure	≥ 10 MPa (100 bar)
Length	5.8 m / 6.0 m (Standard), Custom on request
Packaging	Poly-wrapped, end-capped, in wooden/crate box

EN 13348 Seamless, Round Copper Tubes for Medical Gases or Vacuum – Dimensions

Copper tube EN 13348 – Hardness and Strength

Material Temper		Tensile Strength	Elongation min.	Vickers Hardness
Designation	Commonly used term	(MPa)	(%)	HV5
R250	half hard	250	30, 20	75 – 100
R290	hard	290	3	over 100

Copper tube EN 13348 – Typical Available Dimensions

Nominal Outside Diameter(mm)	Tube Length(m)	Wall Thickness(mm)
12	6	0.6
15	3, 6	0.7
22	3, 6	0.9
28	3, 6	0.9
35	6	1.0
42	6	1.0
54	6	1.0
67	6	1.5
76	6	1.5
108	6	1.5
133	6	1.5
159	6	2.0
219	6	3.0

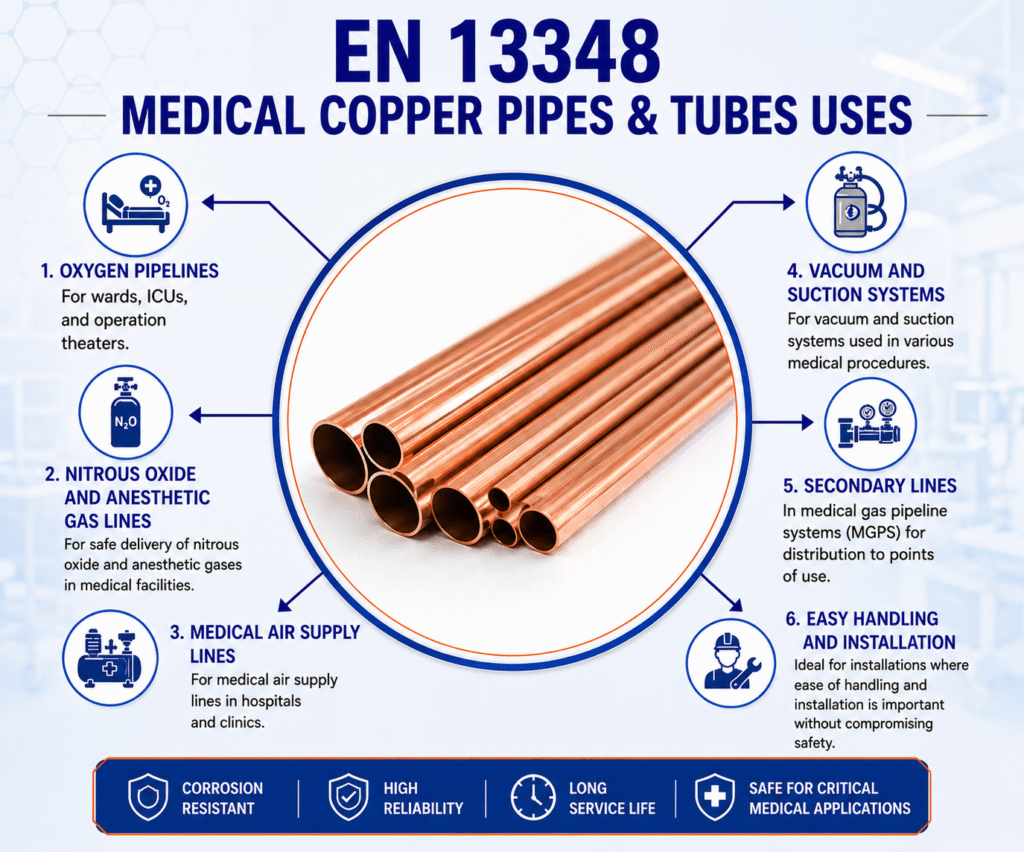

EN 13348 Medical Copper Pipes & Tubes Uses

• Medical Gas Pipeline Systems (MGPS), Medical gas distribution.
• Oxygen, Nitrous Oxide, and Medical Air in Hospitals.
• Installed in ICUs, operation theatres, and emergency wards.
• Used in bedhead panels and OT pendants for direct gas supply.
• Suitable for dental clinics and diagnostic labs.
• Applied in centralized medical gas supply systems.
• Preferred by MGPS contractors and system integrators.
• Used in home oxygen therapy and patient care units.
• Trusted for veterinary hospital gas pipeline systems.
• Essential for modular operation theatre installations.

Packaging Materials Used

• Polythene Sheet
• Corrugation Sheet
• Thermocol Sheet
• Wooden Sheet / Wooden Box

Our Quality Highlights

• Manufactured from 99.9% pure Cu-DHP copper (CW024A).
• Fully compliant with EN 13348 medical copper pipe standard.
• Pipes are degreased, cleaned, and oxygen-safe.
• Hydrostatic pressure tested for leak-proof assurance.
• Surface carbon test conducted (≤ 0.20 mg/dm²).
• Supplied with test certificates and inspection reports.
• Strict dimensional and thickness control during production.
• Packed using polythene, corrugation, Thermocol, and wooden boxes.
