MediStreams has precision engineered EN 13348 Medical Copper Fittings that are safe, reliable and sterile medical gas pipeline system. These fittings are made out of high-quality copper and they guarantee the smooth connections, corrosion resistance, and adherence to the strict international healthcare regulations. They are perfectly compatible with EN 13348 copper pipes and ensure the long-lasting performance and a leak-free operation in gas distribution in hospitals.
EN 13348 Medical Copper Fittings Types
MediStreams also provides a variety of EN 13348 Copper Fittings such as elbows, tees, reducers, couplings, bends and end caps that are all constructed to fit seamlessly with EN 13348 copper pipes. Our fittings are designed to ensure long life service, dimensions, and medical gas can flow without contamination, as we have precise engineering and strict quality control. Both in new installations and extensions in MGPS networks, MediStreams will make sure that our fittings are reliable, safe, and able to meet international medical standards.

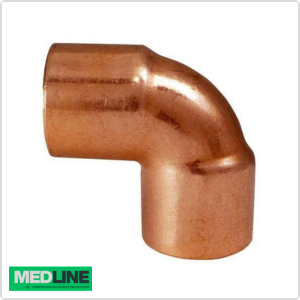

Copper Elbow

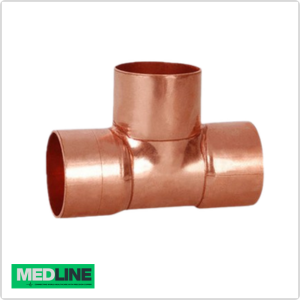

Copper Tee

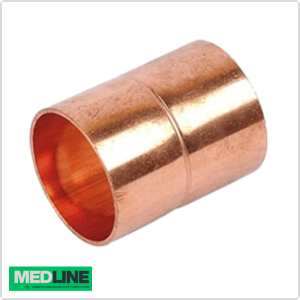

Copper Coupling

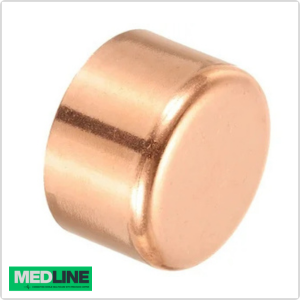

Copper End Cap

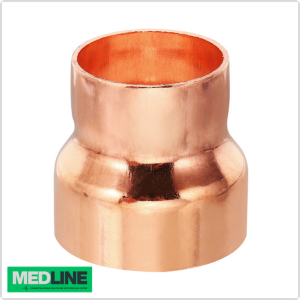

Copper Reducer

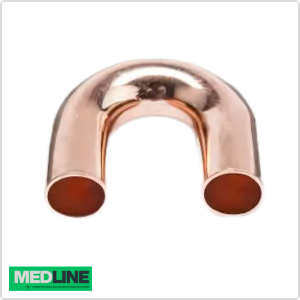

Copper U Bend

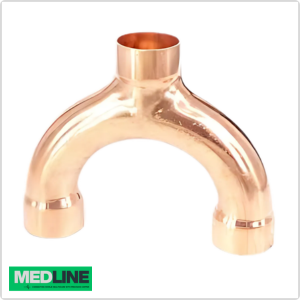

Copper Y Bend

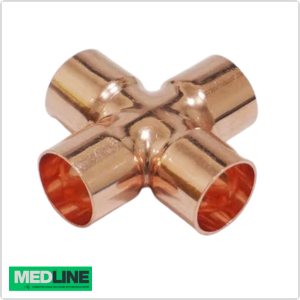

4 Way Joint
Get Quotation
Call For Info
Download CatalogEN 13348 Medical Copper Fittings Specification
- Types: Tee, Elbow (90°/45°), Coupling, Reducer, End Cap, Y Bend, U Bend, 4 Way Joint
- Material: Seamless Medical Grade Copper
- Usage: Used for medical gas pipeline systems (MGPS) in hospitals and healthcare facilities to ensure safe, sterile, and leak-free gas distribution
- Size Range: 6 mm – 108 mm (special sizes available on request)
- Thickness (Standard as per EN 13348):
- 6–28 mm OD → 0.8 to 1.0 mm
- 35–54 mm OD → 1.2 mm
- 67–76 mm OD → 1.5 mm
- 88.9–108 mm OD → 2.0 mm
- Grade: Cu-DHP (99.9% pure copper, phosphorus deoxidized)
- Connection Type: Capillary / Solder Joint
- Standard: EN 13348
- Finish: Degreased, cleaned, and ready for medical gas installation
- Applications: Oxygen, Nitrous Oxide, Carbon Dioxide, Vacuum, and other medical gases
Dimensions and Sizes of EN 13348 Medical Copper Fittings
| Sizes | Wall Thickness |
|---|---|
| 12MM | 0.6MM |
| 15MM | 0.7MM |
| 22MM | 0.9MM |
| 28MM | 0.9MM |
| 35MM | 1.0 MM |
| 42MM | 1.0 MM |
| 54MM | 1.0 MM |
| 67MM | 1.5MM |
| 76MM | 1.5MM |
| 108MM | 1.5MM |
| 133MM | 1.5MM |
| 159MM | 2.0 MM |
| 219MM | 3.0 MM |
