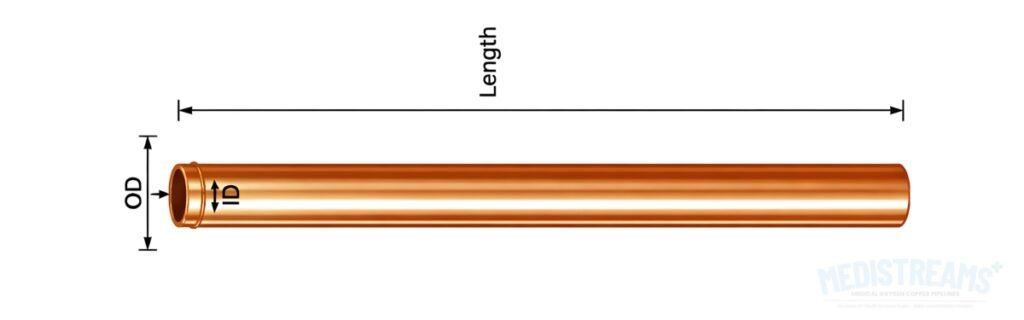

Copper Pipe Weight, Size & Dimensions Chart (mm, kg/m)

Copper Pipe Weight, Size & Dimensions Chart (mm, kg/m) is very important in the process of designing and installing quality medical gas pipeline systems. The following page includes a specific and simple copper pipe weight and dimensions chart in mm and kg/m which enables the engineers, contractors and buyers to determine the weight of the pipes in relation to the size and the thickness of the walls in order to calculate the weight of the pipes easily. The data is appropriate to the medical grade copper pipes usually applied in oxygen, vacuum, and other MGPS requirements, which are able to plan the materials right, calculate the loads, and follow the required standards in the industries.

Copper Pipe Weight, Size & Dimensions Chart (mm, kg/m)

Table of Contents

Copper Pipe Weight, Size & Dimensions Chart (mm, kg/m)

Copper Pipe Weight, Size & Dimensions Chart (mm, kg/m)
Copper Pipes Weight, Size & Dimensions

BS EN 13348 Medical Grade Pipe Size & Dimensions in mm

BS EN 13348 medical grade copper pipes are made specifically in medical gas and vacuum pipelines within medical facilities. They guarantee high purity, cleanliness, and safety in the commission of dependable distribution of oxygen and nitrous oxide among other medical gases.

BS EN 13348 Medical Grade Pipe (Typically available dimensions in ready)

Nominal Outside Diameter
(mm)		Tube Length
(m)		Wall Thickness
(mm)
1260.6
153, 60.7
223, 60.9
283, 60.9
3561.0
4261.0
5461.0
6761.5
7661.5
10861.5
13361.5
15962.0
21963.0
BS EN 13348 Medical Grade Pipe

BS EN 13348 Medical Grade Copper Pipe (Typical Temper of Material Required as per Standard)​

Material TemperTensile StrengthElongation min.Vickers Hardness
DesignationCommonly used term(MPa)(%)HV5
R250half hard25030, 2075 – 100
R290hard2903over 100
BS EN 13348 Medical Grade Copper Pipes

ASTM B819 Seamless Copper Pipe and Tubes Size & Dimensions in Inches

ASTM B819 Seamless Copper Tubes for Medical Gas Systems – Dimensions Type K

Nominal SizeOutside Diameter
(in)		Inside Diameter
(in)		Wall Thickness
(in)		Internal Volume of Tube
(ft3/ft)
1/40.3750.3050.0350.00051
3/80.5000.4020.0490.00088
1/20.6250.5270.0490.00151
5/80.7500.6520.0490.00232
3/40.8750.7450.0650.00303
11.1250.9950.0650.00540
1 1/41.3751.2450.0650.00845
1 1/21.6251.4810.0720.0120
22.1251.9590.0830.0209
2 1/22.6252.4350.0950.0323
33.1252.9070.1090.0461
44.1253.8570.1340.0811
55.1254.8050.1600.126
66.1255.7410.1920.180
88.1257.5830.2710.314
ASTM B819 Seamless Copper Tubes for Medical Gas Systems – Dimensions Type K

ASTM B819 Seamless Copper Tubes for Medical Gas Systems – Dimensions – Type L

Nominal SizeOutside Diameter
(in)		Inside Diameter
(in)		Wall Thickness
(in)		Internal Volume of Tube
(ft3/ft)
1/40.3750.3150.0300.00054
3/80.5000.4300.0350.00101
1/20.6250.5450.0400.00162
5/80.7500.6660.0420.00242
3/40.8750.7850.0450.00336
11.1251.0250.0500.00573
1 1/41.3751.2650.0550.00873
1 1/21.6251.5050.0600.0124
22.1251.9850.0700.0215
2 1/22.6252.4650.0800.0331
33.1252.9450.0900.0473
44.1253.9050.1100.0832
55.1254.8750.1250.130
66.1255.8540.1400.186
88.1257.7250.2000.325

ASTM B88 Copper Pipe and Tubes Size & Dimensions in mm/inches

ASTM B88 Copper Pipe and Tubes Dimensions – Type K, ASTM B88 – Seamless Copper Water Tubes – Dimensions – Type K

Nominal Size
(inches)		Actual Outside Diameter
(inches)
Tolerance on Outside Diameter
(inches)
Wall Thickness
(inches)
Weight
(lb/ft)
Annealed(1)Drawn(2)NominalTolerance
1/43/80.375
9.52		0.002
0.0508		0.001
0.0254		0.035
0.889		0.0035
0.0889		0.133
3/81/20.500
12.7		0.0025
0.0635		0.001
0.0254		0.049
1.24		0.005
0.127		0.269
1/25/80.625
15.9		0.0025
0.0635		0.001
0.0254		0.049
1.24		0.005
0.127		0.344
5/83/40.750
19		0.0025
0.0635		0.001
0.0254		0.049
1.24		0.005
0.127		0.418
3/47/80.875
22.2		0.003
0.0762		0.001
0.0254		0.065
1.65		0.006
0.152		0.641
11 1/81.125
28.6		0.0035
0.0889		0.0015
0.0381		0.065
1.65		0.006
0.152		0.837
1 1/41 3/81.375
34.9		0.004
0.102		0.0015
0.0381		0.065
1.65		0.006
0.152		1.04
1 1/21 5/81.625
41.3		0.0045
0.114		0.002
0.0508		0.072
1.83		0.007
0.178		1.36
22 1/82.125
54		0.005
0.127		0.002
0.0508		0.083
2.11		0.008
0.203		2.06
2 1/22 5/82.625
66.7		0.005
0.127		0.002
0.0508		0.095
2.41		0.010
0.254		2.92
33 1/83.125
79.4		0.005
0.127		0.002
0.0508		0.109
2.77		0.011
0.279		4.00
3 1/23 5/83.625
92.1		0.005
0.127		0.002
0.0508		0.120
3.05		0.012
0.305		5.12
44 1/84.125
105		0.005
0.127		0.002
0.0508		0.134
3.4		0.013
0.33		6.51
55 1/85.125
130		0.005
0.127		0.002
0.0508		0.160
4.06		0.016
0.406		9.67
66 1/86.125
156		0.005
0.127		0.002
0.0508		0.192
4.88		0.019
0.483		13.87

ASTM B88 Copper Pipe and Tubes Dimensions – Type L, ASTM B88 – Seamless Copper Water Tubes – Dimensions – Type L

Nominal Size
(inches)		Actual Outside Diameter
(inches)
Tolerance on Outside Diameter
(inches)
Wall Thickness
(inches)
Weight
(lb/ft)
AnnealedDrawnNominalTolerance
1/43/80.375
9.52		0.002
0.0508		0.001
0.0254		0.030
0.762		0.003
0.0762		0.126
3/81/20.500
12.7		0.0025
0.0635		0.001
0.0254		0.035
0.889		0.004
0.102		0.198
1/25/80.625
15.9		0.0025
0.0635		0.001
0.0254		0.040
1.02		0.004
0.102		0.285
5/83/40.750
19		0.0025
0.0635		0.001
0.0254		0.042
1.07		0.004
0.102		0.362
3/47/80.875
22.2		0.003
0.0762		0.001
0.0254		0.045
1.14		0.004
0.102		0.455
11 1/81.125
28.6		0.0035
0.0889		0.0015
0.0381		0.050
1.27		0.005
0.127		0.655
1 1/41 3/81.375
34.9		0.004
0.102		0.0015
0.0381		0.055
1.4		0.006
0.152		0.884
1 1/21 5/81.625
41.3		0.0045
0.114		0.002
0.0508		0.060
1.52		0.006
0.152		1.14
22 1/82.125
54		0.005
0.127		0.002
0.0508		0.070
1.78		0.007
0.178		1.75
2 1/22 5/82.625
66.7		0.005
0.127		0.002
0.0508		0.080
2.03		0.008
0.203		2.48
33 1/83.125
79.4		0.005
0.127		0.002
0.0508		0.090
2.29		0.009
0.229		3.33
3 1/23 5/83.625
92.1		0.005
0.127		0.002
0.0508		0.100
2.54		0.010
0.254		4.29
44 1/84.125
105		0.005
0.127		0.002
0.0508		0.114
2.9		0.011
0.279		5.38
55 1/85.125
130		0.005
0.127		0.002
0.0508		0.125
3.18		0.012
0.305		7.61
66 1/86.125
156		0.005
0.127		0.002
0.0508		0.140
3.56		0.014
0.356		10.20

ASTM B88 Copper Pipes and Tubes Dimensions – Type M, ASTM B88 – Seamless Copper Water Tubes – Dimensions – Type M

Nominal Size
(inches)		Actual Outside Diameter
(inches)
Tolerance on Outside Diameter
(inches)
Wall Thickness
(inches)
Weight
(lb/ft)
AnnealedDrawnNominalTolerance
1/43/80.375
9.52		0.002
0.0508		0.001
0.0254		––0.106
3/81/20.500
12.7		0.0025
0.0635		0.001
0.0254		0.025
0.635		0.002
0.0508		0.144
1/25/80.625
15.9		0.0025
0.0635		0.001
0.0254		0.028
0.711		0.003
0.0762		0.203
5/83/40.750
19		0.0025
0.0635		0.001
0.0254		––0.263
3/47/80.875
22.2		0.003
0.0762		0.001
0.0254		0.032
0.813		0.003
0.0762		0.328
11 1/81.125
28.6		0.0035
0.0889		0.0015
0.0381		0.035
0.889		0.004
0.102		0.464
1 1/41 3/81.375
34.9		0.004
0.102		0.0015
0.0381		0.042
1.07		0.004
0.102		0.681
1 1/21 5/81.625
41.3		0.0045
0.114		0.002
0.0508		0.049
1.24		0.005
0.127		0.94
22 1/82.125
54		0.005
0.127		0.002
0.0508		0.058
1.47		0.006
0.152		1.46
2 1/22 5/82.625
66.7		0.005
0.127		0.002
0.0508		0.065
1.65		0.006
0.152		2.03
33 1/83.125
79.4		0.005
0.127		0.002
0.0508		0.072
1.83		0.007
0.178		2.68
3 1/23 5/83.625
92.1		0.005
0.127		0.002
0.0508		0.083
2.11		0.008
0.203		3.58
44 1/84.125
105		0.005
0.127		0.002
0.0508		0.095
2.41		0.010
0.254		4.66
55 1/85.125
130		0.005
0.127		0.002
0.0508		0.109
2.77		0.011
0.279		6.66
66 1/86.125
156		0.005
0.127		0.002
0.0508		0.122
3.1		0.012
0.305		8.91

ASTM B88M – Seamless Copper Water Tubes – Metric Dimensions – Type A

Nominal Size
Outside Diameter
(mm)
Wall Thickness
(mm)
Tolerance +/-
Maximum Deviation at any Point
(mm)
Weight
(kg/m)
6
0.236		0.9
0.0354		0.08
0.00315		0.12
8
0.315		0.9
0.0354		0.09
0.00354		0.18
10
0.394		0.9
0.0354		0.09
0.00354		0.23
12
0.472		1.2
0.0472		0.1
0.00394		0.36
15
0.591		1.2
0.0472		0.1
0.00394		0.47
18
0.709		1.2
0.0472		0.1
0.00394		0.57
22
0.866		1.6
0.063		0.15
0.00591		0.92
28
1.1		1.6
0.063		0.15
0.00591		1.19
35
1.38		1.6
0.063		0.15
0.00591		1.50
42
1.65		1.8
0.0709		0.2
0.00787		2.03
54
2.13		2.1
0.0827		0.2
0.00787		3.06
67
2.64		2.4
0.0945		0.25
0.00984		4.35
79
3.11		2.8
0.11		0.3
0.0118		5.99
105
4.13		3.4
0.134		0.35
0.0138		9.70
130
5.12		4.0
0.157		0.4
0.0157		14.2
156
6.14		4.8
0.189		0.5
0.0197		20.3
206
8.11		6.8
0.268		0.7
0.0276		38.0
257
10.1		8.5
0.335		0.85
0.0335		59.3
308
12.1		10.3
0.406		1
0.0394		86.1

ASTM B88M – Seamless Copper Water Tubes – Metric Dimensions – Type B

Nominal Size
Outside Diameter
(mm)
Wall Thickness
(mm)
Tolerance +/-
Maximum Deviation at any Point
(mm)
Weight
(kg/m)
6
0.236		0.7
0.0276		0.07
0.00276		0.10
8
0.315		0.8
0.0315		0.08
0.00315		0.16
10
0.394		0.8
0.0315		0.08
0.00315		0.21
12
0.472		0.9
0.0354		0.09
0.00354		0.28
15
0.591		1.0
0.0394		0.1
0.00394		0.39
18
0.709		1.0
0.0394		0.1
0.00394		0.48
22
0.866		1.1
0.0433		0.1
0.00394		0.65
28
1.1		1.2
0.0472		0.1
0.00394		0.90
35
1.38		1.4
0.0551		0.15
0.00591		1.32
42
1.65		1.5
0.0591		0.15
0.00591		1.71
54
2.13		1.7
0.0669		0.15
0.00591		2.50
67
2.64		2.0
0.0787		0.15
0.00591		3.65
79
3.11		2.3
0.0906		0.2
0.00787		4.95
105
4.13		2.8
0.11		0.25
0.00984		8.04
130
5.12		3.1
0.122		0.3
0.0118		11.0
156
6.14		3.5
0.138		0.3
0.0118		15.0
206
8.11		5.0
0.197		0.35
0.0138		28.2
257
10.1		6.3
0.248		0.5
0.0197		44.4
308
12.1		7.1
0.28		0.65
0.0256		60.0

ASTM B88M – Seamless Copper Water Tubes – Metric Dimensions – Type C

Nominal Size
Outside Diameter
(mm)
Wall Thickness
(mm)
Tolerance +/-
Maximum Deviation at any Point
(mm)
Weight
(kg/m)
6
0.236		0.6
0.0236		–0.09
8
0.315		0.6
0.0236		–0.13
10
0.394		0.6
0.0236		–0.16
12
0.472		0.6
0.0236		0.06
0.00236		0.19
15
0.591		0.7
0.0276		0.07
0.00276		0.28
18
0.709		0.7
0.0276		0.07
0.00276		0.34
22
0.866		0.8
0.0315		0.08
0.00315		0.48
28
1.1		0.9
0.0354		0.09
0.00354		0.69
35
1.38		1.1
0.0433		0.1
0.00394		1.05
42
1.65		1.2
0.0472		0.1
0.00394		1.37
54
2.13		1.5
0.0591		0.15
0.00591		2.21
67
2.64		1.6
0.063		0.15
0.00591		2.94
79
3.11		1.8
0.0709		0.2
0.00787		3.90
105
4.13		2.4
0.0945		0.25
0.00984		6.92
130
5.12		2.7
0.106		0.25
0.00984		9.65
156
6.14		3.1
0.122		0.3
0.0118		13.3
206
8.11		4.3
0.169		0.45
0.0177		24.4
257
10.1		5.4
0.213		0.55
0.0217		38.2
308
12.1		6.4
0.252		0.65
0.0256		54.2

EN 1057 Copper Pipes Size & Dimensions in mm

EN 1057 R250 Half hard and R290 Hard Plain Straight Copper Pipes / Tubes – Dimensions

Nominal Outside Diameter
(mm)		Tube Length
(m)		Wall Thickness (mm)
XY
63, 60.60.8
83, 60.60.8
103, 60.60.8
153, 60.71.0
223, 60.91.2
283, 60.91.2
353, 61.21.5
423, 61.21.5
543, 61.22.0
673, 61.22.0
763, 61.52.0
1083, 61.52.5
1333, 61.5
1593, 62.0
21963.0

EN 1057 Copper Pipes and Tube Material Temper

Material TemperSize RangeTensile StrengthElongation min.Vickers Hardness
EN 1173 DesignationCommonly used term(mm)(MPa)(%)HV5
R220annealed, soft6 – 542204040 – 70
R250half hard6 – 66.72502075 – 100
R290hard6 – 159290595 – 120

EN 1057 R220 Annealed Soft Plain Coil – Dimensions

Nominal Outside Diameter
(mm)		Coil Length
(m)		Wall Thickness (mm)
15251.0
22251.2

EN 1057 R250 Half hard and R290 Hard Chrome Plated Tubes – Dimensions

Nominal Outside Diameter
(mm)		Tube Length
(m)		Wall Thickness (mm)
152, 30.7
222, 30.9
2830.9
3531.0
4231.0
5431.0

EN 1057 R220 Annealed Soft PVC Covered Coils – dimensions

Nominal Outside Diameter
(mm)		Coil Length
(m)		Wall Thickness (mm)
8250.6
10250.7
15251.0
22251.2
28201.2

ASTM B280 Copper Pipes Size & Dimensions in mm

ASTM B280 Copper Tube for Air Conditioning and Refrigeration (ACR) – Dimensions

Nominal Size
(inches)		Annealed (A) or Drawn Temper (D)Outside Diameter
(inches)
Inside Diameter
(inches)
Wall Thickness
(inches)
Cross Sectional Area of Bore
(square inches)
1/8A0.125
3.18		0.065
1.65		0.030
0.762		0.0033
2.13
3/16A0.187
4.75		0.128
3.25		0.030
0.762		0.0129
8.32
1/4A0.250
6.35		0.190
4.83		0.030
0.762		0.0284
18.3
5/16A0.312
7.92		0.248
6.3		0.032
0.813		0.0483
31.2
3/8A0.375
9.52		0.311
7.9		0.032
0.813		0.076
49
D0.375
9.52		0.315
8		0.030
0.762		0.078
50.3
1/2A0.500
12.7		0.436
11.1		0.032
0.813		0.149
96.1
D0.500
12.7		0.430
10.9		0.035
0.889		0.145
93.5
5/8A0.625
15.9		0.555
14.1		0.035
0.889		0.242
156
D0.625
15.9		0.545
13.8		0.040
1.02		0.233
150
3/4A0.750
19		0.680
17.3		0.035
0.889		0.363
234
A0.750
19		0.666
16.9		0.042
1.07		0.348
225
D0.750
19		0.666
16.9		0.042
1.07		0.348
225
7/8A0.875
22.2		0.785
19.9		0.045
1.14		0.484
312
D0.875
22.2		0.785
19.9		0.045
1.14		0.484
312
1 1/8A1.125
28.6		1.025
26		0.050
1.27		0.825
532
D1.125
28.6		1.025
26		0.050
1.27		0.825
532
1 3/8A1.375
34.9		1.265
32.1		0.055
1.4		1.26
813
D1.375
34.9		1.265
32.1		0.055
1.4		1.26
813

Copper Tube for Air Conditioning and Refrigeration (ACR) Working Pressures as per ASTM B280 Standard specs

Nominal Size
(inches)		Max. Working Pressure (psi)
Annealed CoilsAnnealed Straight LengthsDrawn Straight Lengths
1/82613
18017
3/161645
11342
1/41195
8240
5/191017
7012
3/8836
5764		777
5357		1524
10508
1/2618
4261		664
4578		1302
8977
5/8525
3620		615
4240		1206
8315
3/4435
2999		538
3710		1055
7274
7/8495
3413		496
3420		972
6702
1 1/8420
2896		421
2903		825
5688
1 3/8373
2572		374
2579		733
5054
1 5/8347
2393		348
2399		682
4702
2 1/8309
2131		607
4185
2 5/8286
1972		560
3861
3 1/8270
1862		529
3647
3 5/8258
1779		506
3489
4 1/8249
1717		489
3372

BS 2871 Coppe Pipes and Tubes Size & Dimensions in mm / inches

BS 2871 Copper Tubes Table X, Y and Z – Working Pressures vs. BS 2871 Copper Tubes Table X, Y and Z – Working Size

Nom. Diameter
(mm)		Outside Diameter
(mm)
Table X
Half hard light gauge tube		Table Y
Half hard an annealed tube		Table Z
Hard drawn thin wall tube
Thickness
(mm)
Maximum Working Pressure
(N/mm2)
Thickness
(mm)
Maximum Working Pressure
(N/mm2)
Thickness
(mm)
Maximum Working Pressure
(N/mm2)
66
0.236		0.6
0.0236		13.3
1929		0.8
0.0315		14.4
2088		0.5
0.0197		11.3
1639
88
0.315		0.6
0.0236		9.7
1407		0.8
0.0315		10.5
1523		0.5
0.0197		9.8
1421
1010
0.394		0.6
0.0236		7.7
1117		0.8
0.0315		8.2
1189		0.5
0.0197		7.8
1131
1212
0.472		0.6
0.0236		6.3
914		0.8
0.0315		6.7
972		0.5
0.0197		6.4
928
1515
0.591		0.7
0.0276		5.8
841		1
0.0394		6.7
972		0.5
0.0197		5
725
1818
0.709		0.8
0.0315		5.6
812		1
0.0394		5.5
798		0.6
0.0236		5
725
2222
0.866		0.9
0.0354		5.1
740		1.2
0.0472		5.7
827		0.6
0.0236		4.1
595
2828
1.1		0.9
0.0354		4
580		1.2
0.0472		4.2
609		0.6
0.0236		3.2
464
3535
1.38		1.2
0.0472		4.2
609		1.5
0.0591		4.1
595		0.7
0.0276		3
435
4242
1.65		1.2
0.0472		3.5
508		1.5
0.0591		3.4
493		0.8
0.0315		2.8
406
5454
2.13		1.2
0.0472		2.7
392		2
0.0787		3.6
522		0.9
0.0354		2.5
363
6767
2.64		1.2
0.0472		2
290		2
0.0787		2.8
406		1
0.0394		2
290
76.176.2
3		1.5
0.0591		2.4
348		2
0.0787		2.5
363		1.2
0.0472		1.9
276
108108.1
4.26		1.5
0.0591		1.7
247		2.5
0.0984		2.2
319		1.2
0.0472		1.7
247
133133.4
5.25		1.5
0.0591		1.4
203		1.5
0.0591		1.6
232
159159.4
6.28		2
0.0787		1.5
218		1.5
0.0591		1.5
218

ASTM B302 – Threadless Copper Pipes Size & Dimensions in mm / inches

ASTM B302 – Threadless Copper Pipes – Dimensions

Nominal Pipe Size
(in)		Outside Diameter
(in)
Wall Thichness
(in))
Weight
(lb/ft)
1/40.540
13.7		0.065
1.65		0.376
0.56
3/80.675
17.1		0.065
1.65		0.483
0.719
1/20.840
21.3		0.065
1.65		0.613
0.912
3/41.050
26.7		0.065
1.65		0.780
1.16
11.315
33.4		0.065
1.65		0.989
1.47
1 1/41.660
42.2		0.065
1.65		1.26
1.88
1 1/21.900
48.3		0.065
1.65		1.45
2.16
22.375
60.3		0.065
1.65		1.83
2.72
2 1/22.875
73		0.065
1.65		2.22
3.3
33.500
88.9		0.083
2.11		3.45
5.13
3 1/24.000
102		0.095
2.41		4.52
6.73
44.500
114		0.107
2.72		5.72
8.51
55.562
141		0.132
3.35		8.73
13
66.625
168		0.158
4.01		12.4
18.5
88.625
219		0.205
5.21		21.0
31.3
1010.750
273		0.256
6.5		32.7
48.7
1212.750
324		0.313
7.95		47.4
70.5
Get Suggetions Get Suggetion
Call For More Info Call For Info
Get Pdf for Copper Pipe size, weight and dimentions in mm, inches and kg/m Get Full Pdf

ASTM B306 Copper Pipes Size & Dimensions in mm / inches

ASTM B306 Copper Tubes for Drain, Waste and Vent – Dimensions

Nominal Diameter
(in)		Outside Diameter
(in)
Inside Diameter
(in)
Wall Thickness
(in)
Cross Sectional Area of Bore
(in2) 		Mass (Weight) per unit Length
(lb/ft)		Mass (Weight) with Water
(lb/ft)
1 1/41.375
34.9		1.295
32.9		0.040
1.02		1.320.6501.22
1 1/21.625
41.3		1.541
39.1		0.042
1.07		1.870.811.62
22.125
54		2.041
51.8		0.042
1.07		3.271.072.48
33.125
79.4		3.030
77		0.045
1.14		7.211.694.81
44.125
105		4.009
102		0.058
1.47		11.62.877.88
55.125
130		4.981
127		0.072
1.83		19.54.4312.9
66.125
156		5.959
151		0.083
2.11		27.96.1018.2

ASTM B306 Copper Tubes for Drain, Waste and Vent – Working Pressures

Nominal Size
(in)		Max. Working Pressure (psi)
AnnealedDrawn
1 1/4280
1931		549
3785
1 1/2249
1717		489
3372
2185
1276		362
2496
3135
931		265
1827
4127
876		250
1724
5129
889		252
1738
6126
869		247
1703
8124
855		244
1682

ASTM B42 – Seamless Copper Pipes Weight, Size & Dimensions mm, inches and kg/m

ASTM B42 – Seamless Copper Pipes – Dimensions Regular

Nominal Pipe Size
(in)		Outside Diameter
(in)
Wall Thichness
(in)
Weight
(lb/ft)
1/80.405
10.3		0.062
1.57		0.259
0.385
1/40.540
13.7		0.082
2.08		0.457
0.68
3/80.675
17.1		0.090
2.29		0.641
0.954
1/20.840
21.3		0.107
2.72		0.955
1.42
3/41.050
26.7		0.114
2.9		1.30
1.93
11.315
33.4		0.126
3.2		1.82
2.71
1 1/41.660
42.2		0.146
3.71		2.69
4
1 1/21.900
48.3		0.150
3.81		3.20
4.76
22.375
60.3		0.156
3.96		4.22
6.28
2 1/22.875
73		0.187
4.75		6.12
9.11
33.500
88.9		0.219
5.56		8.76
13
3 1/24.000
102		0.250
6.35		11.4
17
44.500
114		0.250
6.35		12.9
19.2
55.562
141		0.250
6.35		16.2
24.1
66.625
168		0.250
6.35		19.4
28.9
88.625
219		0.312
7.92		31.6
47
1010.750
273		0.365
9.27		46.2
68.8
1212.750
324		0.375
9.52		56.5
84.1

ASTM B42 – Seamless Copper Pipes – Dimensions – Extra Strong

Nominal Pipe Size
(in)		Outside Diameter
(in)
Wall Thichness
(in)
Weight
(lb/ft)
1/80.405
10.3		0.100
2.54		0.371
0.552
1/40.540
13.7		0.123
3.12		0.625
0.93
3/80.675
17.1		0.127
3.23		0.847
1.26
1/20.840
21.3		0.149
3.78		1.25
1.86
3/41.050
26.7		0.157
3.99		1.71
2.54
11.315
33.4		0.182
4.62		2.51
3.74
1 1/41.660
42.2		0.194
4.93		3.46
5.15
1 1/21.900
48.3		0.203
5.16		4.19
6.24
22.375
60.3		0.221
5.61		5.80
8.63
2 1/22.875
73		0.280
7.11		8.85
13.2
33.500
88.9		0.304
7.72		11.8
17.6
3 1/24.000
102		0.321
8.15		14.4
21.4
44.500
114		0.341
8.66		17.3
25.7
55.562
141		0.375
9.52		23.7
35.3
66.625
168		0.437
11.1		32.9
49
88.625
219		0.500
12.7		49.5
73.7
1010.750
273		0.500
12.7		62.4
92.9

ASTM B837 Seamless Copper Tubes Copper Pipes Weight, Size & Dimensions in mm, Inches and kg/m

ASTM B837 – Seamless Copper Tubes for Natural Gas and Liquified Petroleum – Dimensions

Nominal Size
(in)		Outside Diameter
(in)
Wall Thickness
(in)
Weight
(lbs/ft)
3/80.375
9.52		0.030
0.762		0.126
0.188
1/20.500
12.7		0.035
0.889		0.198
0.295
5/80.625
15.9		0.040
1.02		0.285
0.424
3/40.750
19		0.042
1.07		0.362
0.539
7/80.875
22.2		0.045
1.14		0.455
0.677
1 1/81.125
28.6		0.050
1.27		0.655
0.975
