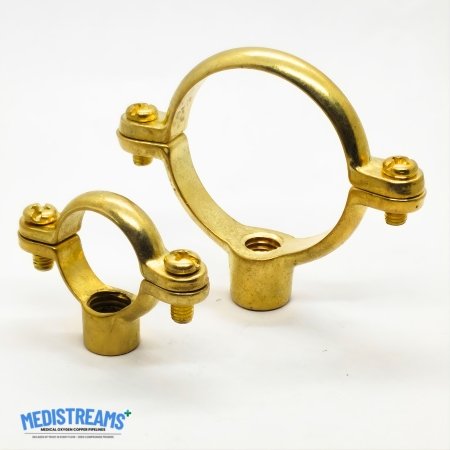

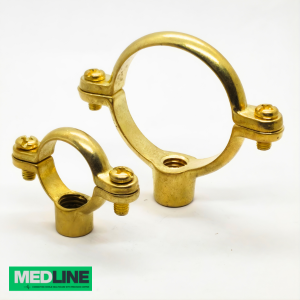

Brass Munsen Rings are the necessary support elements that make the Medical Oxygen Copper Pipes as stable and accurate as possible. Our brass Munsen Rings are designed with high-strength performance which makes the installation of the brass Munsen Rings in vital MGPS settings to be vibration-free. They are designed to be durable and corrosion resistant giving pipe alignment and safety of the pipes. They are ideal in hospitals and other health care facilities whereby the pipeline installations are clean, reliable, and professional.
Brass Munsen Rings Specifications
Our Copper/Brass Munsen Rings are designed with a stable solution of fixing the Medical Oxygen Copper Pipes, with high grip, alignment, and high-vibration resistance durability. They can be installed in MGPS systems, and they provide stability, resistance to corrosion, and support of the pipes, necessary in the critical healthcare facilities.
| Specification | |
|---|---|
| Material | High-Grade Brass (Copper Alloy) |
| Suitable Pipe Standards | EN 13348 , EN 1057, ASTM B819, ASTM B88 |
| Size Range | 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm |
| Temperature Resistance | Up to 200°C |
| Corrosion Resistance | Excellent, suitable for MGPS environments |
| Mounting Type | Wall / Ceiling Support |
| Grip Type | Two-Piece Clamp Design |
| Finish | Polished Brass / Anti-Corrosion Coated |
| Applications | Medical Gas Pipeline Systems (O₂, N₂O, Vacuum, AGSS) |
Get Quotation
Call For Info
Get CatalogueBrass Munsen Rings Dimensions And Sizes Table
| Pipe Size (OD) | Munsen Ring Size | Inner Diameter (ID) | Band Width | Thickness |
|---|---|---|---|---|
| 6 mm | 6 mm | 6–7 mm | 12 mm | 1.0 mm |
| 8 mm | 8 mm | 8–9 mm | 12 mm | 1.0 mm |
| 10 mm | 10 mm | 10–11 mm | 12 mm | 1.2 mm |
| 12 mm | 12 mm | 12–13 mm | 15 mm | 1.2–1.5 mm |
| 15 mm | 15 mm | 15–16 mm | 15 mm | 1.2–1.5 mm |
| 18 mm | 18 mm | 18–19 mm | 15 mm | 1.5 mm |
| 22 mm | 22 mm | 22–23 mm | 18 mm | 1.5–2.0 mm |
| 25 mm | 25 mm | 25–26 mm | 18 mm | 1.5–2.0 mm |
| 28 mm | 28 mm | 28–29 mm | 18 mm | 1.5–2.0 mm |
| 32 mm | 32 mm | 32–33 mm | 20 mm | 2.0 mm |
| 35 mm | 35 mm | 35–36 mm | 20 mm | 2.0 mm |
| 38 mm | 38 mm | 38–39 mm | 20 mm | 2.0 mm |
| 42 mm | 42 mm | 42–43 mm | 20 mm | 2.0 mm |
| 48 mm | 48 mm | 48–50 mm | 22 mm | 2.0–2.5 mm |
| 54 mm | 54 mm | 54–56 mm | 22 mm | 2.0–2.5 mm |
| 60 mm | 60 mm | 60–62 mm | 22 mm | 2.5 mm |
| 64 mm | 64 mm | 64–66 mm | 25 mm | 2.5 mm |
| 70 mm | 70 mm | 70–72 mm | 25 mm | 2.5 mm |
| 76 mm | 76 mm | 76–78 mm | 25 mm | 2.5 mm |
| 89 mm | 89 mm | 89–91 mm | 30 mm | 3.0 mm |
| 108 mm | 108 mm | 108–110 mm | 30–32 mm | 3.0 mm |
