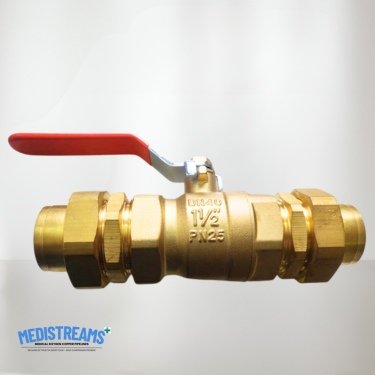

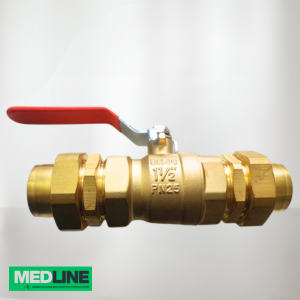

MediStreams Barzable Copper Ball Valve is specifically created to be used in medical gas pipeline systems (MGPS), which has a reliable flow controllable system and easy maintenance. It is made of high quality copper-brass parts, has a union end connection to fit on the pipe easily and ensure its seal. These valves are perfect in the use of oxygen, vacuum, air and other medical gases with accuracy in their performance and durability in use in the hospital and other health care facilities.
Barzable Copper Ball Valve : Specification
- Type: Copper Ball Valve with Union End
- Material: Brass / Copper Alloy body,
- Uses: Medical gas pipelines, hospitals, healthcare facilities
- Sizes: ½″, ¾″, 1″, 1¼″, 1½″, 2″ (custom sizes available)
- Thickness: As per EN 13348 / ASTM B88 standards
- Grade: CW617N / Brass Alloy (commonly used for medical applications)
- Standards: EN 13348, ASTM B88, ASTM B819, CGA G-4.1 (oxygen cleaned)
- Pressure Rating: Up to 600 psi / 41.4 bar
- Temperature Range: Up to 204°C / 400°F
- Features: Blowout-proof stem, lockable handle, leak-tested, union end for easy installation.
Get Quotation
Call For Info
Download CatalogBarzable Copper Ball Valve : Dimension and Size
| Size (Inch) | Tube OD (mm) | Wall Thickness (mm) | Pressure Rating (psi) | Connection Type |
|---|---|---|---|---|
| ½″ | 15 mm | 1.0 mm | 600 psi | Union End / Brazed |
| ¾″ | 22 mm | 1.0 mm | 600 psi | Union End / Brazed |
| 1″ | 28 mm | 1.2 mm | 600 psi | Union End / Brazed |
| 1¼″ | 35 mm | 1.2 mm | 600 psi | Union End / Brazed |
| 1½″ | 42 mm | 1.5 mm | 600 psi | Union End / Brazed |
| 2″ | 54 mm | 1.5 mm | 600 psi | Union End / Brazed |
